Description

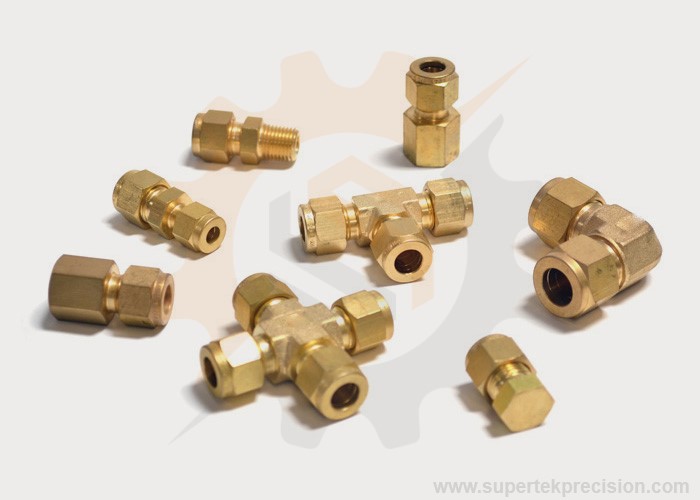

Brass compression fittings are a type of plumbing fitting that is used to join two pipes or tubes together. They consist of three main components: a compression nut, a compression ring, and a body that houses the pipe or tube being connected. The compression nut is typically hexagonal in shape and is used to tighten the compression ring against the pipe or tube connected. A compression ring also known as a ferrule is a small, tapered ring that fits around the pipe or tube and creates a seal when compressed. Body of the fitting is typically cylindrical and is designed to house the pipe or tube being connected.

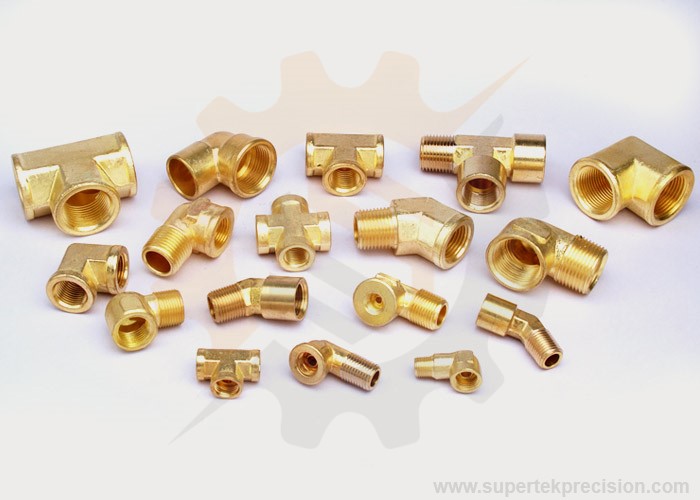

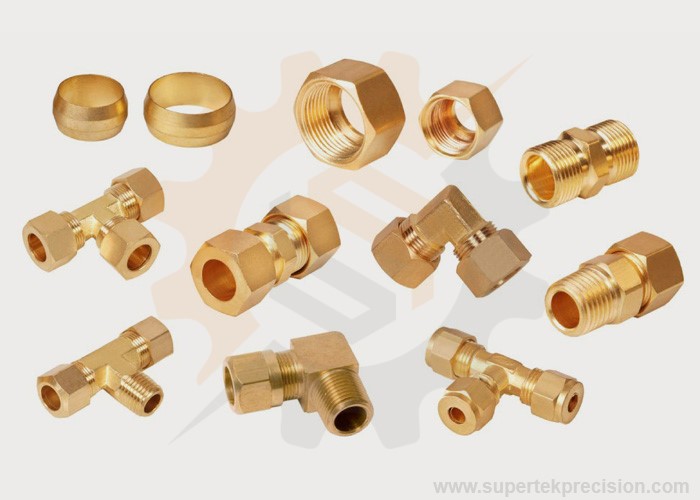

| Type of Brass Compression Fittings : | » Brass Elbow Fittings » Compression Connectors » Brass Olive Union » Brass Reducing Elbow » Brass Union Elbow » Compression Adaptor |
» Brass Union Fittings » Brass Olive Nut » Brass Union Joint » Compression Tees » Brass Branch Tee » Compression Nuts |
» Compression Olives » Brass Four Way » Brass Olive Fittings » Brass Sleeves » Brass P U Connector » Compression Elbows |
| Material : | » Free Cutting Brass IS 319 Type (I) or Free Cutting Brass as per BS 249 Type (I) or » High Grade Free Cutting Brass » CDA 360 Brass, CZ-360 High Grade Brass » Any Special Brass Material Composition as per customer requirements |
||
| Threads : | » ISO Metric (MM) / BA / BSW / BSP / BSPT / BSF / BSB / UNC / UNF / UNEF / NPT / NPS / Specified Threads » Any threads as per client specification. |
||
| Length / Size : | » Sizes available from 1/4 3/8 1/2 5/8 3/4 5/16 7/8 and as per custom designs and requirements. | ||
| Finish And Coating : | » Natural, Nickle Plated, Tin Plated or any coating as per customer specification. | ||
